TABLET COATING:


  (a) Film Coating (a) Sugar Coating
    Lab Automatic tablet coating – Option for Interchangeable Pan   Lab Conventional Coating machine

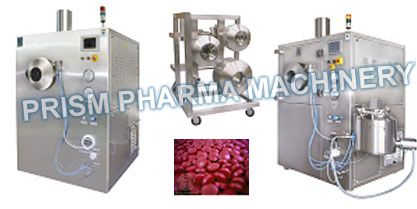

Lab Automatic tablet coating


  Application & Process:

The prism compact NewLABOcoata- Lab Automatic tablet coating is high efficiency and intelligent automated film & sugar coating advance technology is mainly used in pharmaceutical and food industries. Featuring mechatronis and confirming to the requirement of cGMP. It is a high efficiency, energy saving, safe and clean equipment for film & sugar coating of tablets, Pills and candies with film - organic solvent and aqueous coating.

The tablet to be coated make continuous complicated orbital motion the closed rotating Drum under the action of a streamline of Baffles. During the motion coating medium automatically sprays according to the technological process and rational technological parameters, at the same time hot filtered air supplied under a negative pressure. The hot air penetrates through the tablets core layers and is discharged from the bottom of the layers, so that the coating medium sprayed on the surface of the tablet cores will dry rapidly and evenly, thus forming a solid and smooth surface film on tablet.

  New Design Features:

Designed strictly compliance with the stipulation of cGMP.
Product contact parts AISI 316/ 316 L Quality.
Complete automatic coating processes with advanced PLC Controls with HMI touch Screen.
Perforated coating pan with mixing baffles, anti slide ribs and variable speed by VFD.
Enclosed pan drive through reduction gear box and motor.
All doors, safety guards and covers are provided with a suitable food grade seals.
The perforated pan has a suitable mouth opening for tablet Charging and Discharging which provided with stainless steel cover and a glass window for process visualization.
The perforated pan has a suitable mouth opening for tablet Charging and Discharging which provided with stainless steel cover and a glass window for process visualization.
Front Entry stainless steel arm, with facility to adjust the angle of spray guns is provided.
Atomized Spraying system with solution holding tank, peristaltic pump, atomized spray gun and auto electro-pneumatic spraying controls system through PLC
Inbuilt Inlet Air handler with blower, electric heater, 20 & 5 micron filter & 0.3 micron HEPA.
Inbuilt Exhaust air blower with 20 micron filter.
Inlet air flow and exhaust air flow can be adjusted through VFD of blower.
Differential pressure indicator for pan and HEPA filter.
WIP/CIP system for easy cleaning
Option for Interchangeable pan.

  Safety Features:

Explosion proof electric motor.
Auto shutoff system for over limit temperature/ heating & Auto stop when process is completed.
Air pressure switch installed to ensure pressure is in limit.
Differential pressure indicator for HEPA Filter.
Overload relay controls.

  TECHNICAL SPECIFICATIONS:

MODEL LABOcoata- 12 LABOcoata -20 Interchange pan LABOcoata-20 LABOcoata- 24
Pan Diameter 12”-300 mm 20” maximum 20” ( 508) 24”( 610)
Interchangeable NO
12” 14” 16” 18” 20”
300 355 406 458 508
NO NO
Pan Drum - RPM 4 to 20 4 to 20 4 to 20 4 to 20
Pan Working Load Kg 1
1 3 4.5 10 18
18 27
Total Electric Power Kw 8.75 16.68 22.68 28.55
Spraying gun 1 No. 1-2 nos. 2 nos. 2 nos.
Machine size L XW XH in cm 100 X100X120 cm 100 X100X120 cm 100 X100X120 100 X100X120

  Lab Automatic tablet coating

INQUIRY NOW...

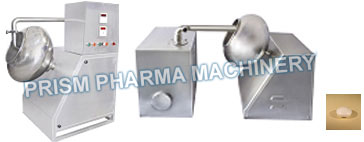

  Conventional Coating Pan
  Application & Process:

The Laboratory scale conventional costing machine is ideal for film and sugar coating. The machine is available with 12” size of stainless steel coating pan. The machine is designed with fabricated structure fitted with SS enclosure and drive unit of motor and reduction gear box. Machine has variable speed drive to achieve 5 to 15 RPM by variable speed pulley. The machine is mounted on anti vibration pads which avoids foundation and vibration.

A hot air blower system is provided separately on trolley for easy cleaning and setting. The system has thermostat controller to selected temperatures between 40º C to 100º C by electric Heater. The complete systems fitted suitable motor, blower, piping and nozzle for hot air flow.

  New Design Features:

Design as per GMP requirements.
Contact parts of SS 316 and Non contact parts SS 304 quality.
Available in interchange pan with 12”/ 14”/ 16”& 18”
Easy to inter change to polishing pan and other size coating pan.
The machine Inbuilt with hot air system • Ac frequency drive for pan speed.

  TECHNICAL SPECIFICATIONS:

MODEL PCP- 12
Pan Size 12 “
Loading Capacity in Kg 1Kg
Pan Drive Drive with Reduction gear Box
Pan Angle 30º
Pan RPM 5 to 12 by VFD
Total Electric Power 2.25 Kw

  : Lab Coating Machine

INQUIRY NOW...
