POWDER MIXER:


  (a) Wet Mixing: (b) Dry Mixing:
    Lab High Shear Mixer ( RMG)   Lab Paddle Mixer
    Lab Mass Mixer   Lab Ribbon Mixer
    Lab Sigma Mixer ( Dough Mixing)
    Lab Paddle Mixer

  1.High Shear Mixer Granulator- RMG
  Application & Process:

The Prism compact LABOmix High Shear Mixer Granulator is a multi purpose processor equally suitable for high speed dispersion of dry powder, aqueous or solvent granulations and effervescent products and melts pelletization. Prism NewLABOmix-High Shear Mixer granulator series is characterized by the compact construction, modern design and the entire user and user friendly attributes which form the ergonomics design aspects are essential for a wide range of application. The overall concepts of the NewLABOmix steam from similar of process based on production model and common needs of consistent processing and ease for operation and cleaning. The mixing bowl designed with shallow and wide diameter for guarantee a consistent product vertex mixing by main impeller and granulated by chopper blade. A typical 3 minute dry mix operation than granulation by adding binder manually or spraying unit with pressurized. A free flowing granulate is produced after 3-5 minute and the granules are than rapidly discharge.

  New Design Features:

Designed strictly compliance with the stipulation of cGMP.
Product contact parts AISI 316/ 316 L Quality & Food grade silicon.
High speed mixing, homogenizing, humidifying, granulating and pelletizing process.
Easy to install, operate, clean, convenient & user friendly.
Mobile self-contained unit and Plug 'n' Play concept for easy installation.
Variable Speed for main impeller and chopper by VFD.
Air purging system for seals of main and copper impeller.
Product contact parts are mirror finished and non contact parts are matt finished.
Option Available with Interchangeable Bowl for 1 kg, 3 kg and 5 kg.
Optional: Interchangeable bowls, Jacketing for heating & cooling, Spraying unit, Explosion proof motor and push button, automatic advanced PLC controls with HMI Touch screen.

  Safety Features:

Total drive transmission system enclosed
Limit switch installed in the top lid ensure lid is closed
Air pressure switch installed to ensure pressure is in limit.

  TECHNICAL SPECIFICATIONS:

MODEL- Lab & Pilot PRMG-5 PRMG-10 PRMG-15 PRMG-25
Bowl Volume in Liter 2.5 / 7.5 / 12 25 38 50
Working Capacity in Kg. 1 / 3 / 5 10 15 20
Main Impeller Speed- RPM By VFD 50 to 290 50 to 290 50 to 290 50 to 290
Chopper Impeller Speed RPM 500 to 2800 Variable 1400/ 2800 Dual 1400/ 2800 Dual 1400/ 2800 Dual
Total Electric Power 2.62Kw 5.75 Kw 5.75Kw 1.75 Kw

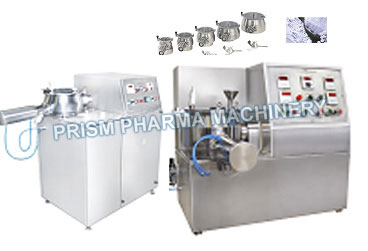

  High Shear Mixer Granulator

INQUIRY NOW...

  2. Mass Mixer / Ribbon Mixer / Paddle Mixer:
  Application & Process:

The Laboratory Mixer is designed for uniformly mixing of dry and wet material and especially suitable for Pharmaceutical, Food and chemicals industries.
The mixer consists of a rigid fabricated structure motor, gear box, mixing drum, stirrer and tilting device. The mixing drum complete with stainless steel body, stirrer and tilting device. The mixing drum complete with stainless steel body, stirrer and sealing arrangement. The drive of mixing paddle is through suitable gear box and motor. The tilting device is provided to make easy the unloading of the material and easy cleaning of the mixing drum. The Mixing stirrer can be provided different shape Ribbon type / Paddle type according to machine.
The material under mixing process can be monitoring through acrylic dust cover and its controls dusting and contaminations. The hinged features allow flexibility of adding solution through cover during in operation. The acrylic dust cover is so interlocked that ensure container is totally closed.

  New Design Features:

Design as per stringent cGMP requirements.
All contact parts SS 316 quality.
Tilting device for easy unloading cleaning.
Self adjusting sealing arrangement to avoid entire black particles.
Uniform mixing.
In locked safety mixing process.
Option for different blade, Mass mixing blade, Paddle blade and Ribbon Blade.


  : Mass Mixer / Ribbon Mixer/ Paddle Mixer

INQUIRY NOW...

  3.Sigma Mixer- ‘Z” Blade Mixer:
  APPLICATION & PROCESS:

The prism compact NewLABOmix- Lab Scale Sigma Mixer is used for mixing and kneading for mixing, kneading of highly viscous mass, sticky and dough like products, Mixing of pastes, rubber, and heavy plastic masses, applications in Food, Rubber, Pharmaceutical, Chemical and agro industries, Dry powder to wet phase mixing. This mixer is most suitable for highly viscous material and dough like masses.
The Lab sigma kneader is a twin basin kneading machine with two horizontally arranged kneading blades, which are deeply geared into one another and strip themselves reciprocally. Each blade moves the material in opposite direction thereby providing excellent cross mixing of all raw materials. The blades pass the trough walls and each other at close clearances resulting in good mixing. The close clearance produces a shearing and tearing action that is beneficial to the size reduction of solids. Selection of appropriate blade shape and speeds result in excellent mixing


  SALIENT FEATURES:

For Mixing, Blending and kneading of high Viscosity Materials, with a combined action of Bulk Movement, Kneading, stretching folding, dividing and Recombining.
Available in Capacity from 1 Kg to 5 Kg Industrial Productions.
Designed as per cGMP – Current Good Manufacturing Practices & Non GMP STANDARD Model.
Contact parts in AISI 316, AISI 304 or MS as desired by customer.
There are different types of blades: Sigma-“Z” blade, Spiral blade, and Naben blade.
Selection of appropriate blade shape and speeds result in excellent mixing.
Safety feature : Over Load protection & Enclosed drive
Option for Hydraulic lifting unloading & spraying system.

  Sigma Mixer
