pallets-making:


    Lab Extruder
    Lab Spherodizer
    Lab Palletizer

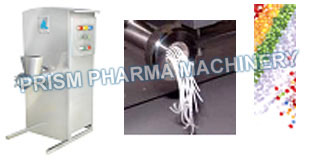

1.Extruder: Powder Extruder

  Application & Process:

The prism compact NewLABOextruder high precise technology is mainly used in pharmaceutical, chemical, Agro chemical and food industries. Featuring mechatronis and confirming to the requirement of cGMP. It is a high efficiency, energy saving, safe and clean equipment for convert mixed dough to fixed diameter extrudes/ needles. The Lab Extruder Equipment has two major parts one is the die screen of required size and other is pressing screw, needles coming out of the extruder are cut into definite length by cutter blade. The size of sieve can very from 0.5 to 5 mm hole size. For conversion into spherical spheres/pellet a Spher’oidizer needs to be used conjunction with the extruder.

  New Design Features:

Designed strictly compliance with the stipulation of cGMP.
Product contact parts AISI 316/ 316 L Quality
Simple & compact Design for Easy to operate, clean, convenient & user friendly.
Flat type pressing blade (Axial Pressing Type)
The assembly is closed by tri clove clamps for easy in operation.
Output: 500 gram to 5 kg per hours.
Motor: 0.5 Hp / 1400 RPM
Sieves available size is 0.5, 0.8,1,1.5, 2, 2.5, 3, 4 & 5mm
Product contact parts are mirror finished and non contact parts are matt finished.

  Powder Extruder

INQUIRY NOW...



2.Spherodizer:

  Application & Process:

The prism compact NewLABOspher’oidizer high precise technology is mainly used in pharmaceutical, chemical, Agro chemical and food industries. Featuring mechatronis and confirming to the requirement of cGMP. It is a high efficiency, energy saving, safe and clean equipment for convert needles from extruder to fixed size of the pellet formed. The Lab Spher’oidizer Equipment has chequered plate rotating at variable speed, the design of the plate depends on the size of pellets being processed in the drum. A Layering equipment used for drug loading and coating application is a modification of spher’oidizer with different plates and nozzle option.

  New Design Features:

Designed strictly compliance with the stipulation of cGMP
Product contact parts AISI 316/ 316 L Quality
Simple & compact Design for Easy to operate, clean, convenient & user friendly.
Dynamically balanced chequered plate having easy removable for cleaning in sp.
Variable speed up to 2800 RPM for chequered plate
Minimum processing capacity 50 grams/batch
Maximum processing capacity 250 grams/batch.
Output: 500 gram to 5 kg per hours.
Motor: 0.5 Hp / 2800 RPM
Discharge assembly with leak tight fitting.
Sieves available size is 0.5, 0.8,1,1.5, 2, 2.5, 3, 4 & 5mm

  Spherodizer

INQUIRY NOW...

  3.Palletizer:
  Application & Process:

Palletize is implemented in the pharmaceutical, agricultural, chemical, nutraceutical industries where it is required to create pellets with uncontrolled characteristics of density, size, and surface. These technologies are implemented in multiple industries with very specific differences required for pharmaceutical batch systems and continuous systems. The Process powder is put on the inclined cylindrical drum and they are converted into round pellets with the help of the cylindrical drums. The inclined cylindrical drum is rotate inclined and spray nozzle is fitted for fluidized / spraying of water/ binder. Due to round baffles the powder is fluidized and agglomeration and also that time fluidized the water/ binder by spray nozzle. Due to rotation of drum agglomerated granules is rotate in the drum during the pelletization process. During this movement of pellet on the rotating drum, they are get bigger size by the fluidization on the drum and converted into approximately same size of its diameter 2mm to 6 mm.
Wet Pellets are turned into spherical shape by rotating.

  New Design Features:

Designed as per cGMP Model.
Contact parts in AISI 316 and non contact parts in AISI 304
The powder is converted to pellet directly by fluidization of water/ binder
The machines are provided with the spraying nozzle.- 1No.
AC frequency drive for variable speed of drum.

  TECHNICAL SPECIFICATIONS

MODEL PSP -12
Output 1 Kg
Total Electric Power 0.75 kW
Drum size Dia. 300 x 75 mm
Drum speed Up to 90 RPM through AC Frequency drive.

  Palletizer

INQUIRY NOW...
